Parts

Click on the words to see description of the items
Ancillary Parts	Bearings	Brake Plates and Shoes	Cables	Carburettors
Chains	Clothing	Covers, Inner/Outer	Cranks/Crankcase	Electronic Ignition
Engines, New	Exhausts	Footrests	Forks	Framekit
Gaskets	Gearbox	Handlebars	Head and Barrel	Kick Starts, Folding
Lighting	Leading Link Bushes	Mudguards	Nuts and Bolts	Pistons
Seats	Shocks	Stands	Tanks	Tools
Tubes/rim tapes	Tyres	Wheels and Hubs

For any items not shown on the website please contact us and we will try our best to supply it for you.

Handlebars
Old Scottish style bars in chromed steel or lightweight Renthal bars are available from 2" to 6" rise. Grips to suit (soft touch) which are our Greeves own brand.

You may decide to choose the older style bar that looks more the part on your classic machine.

Pre 65 Trials -

Pre 65 Moto-cross -

low and high rise

Back to Parts menu

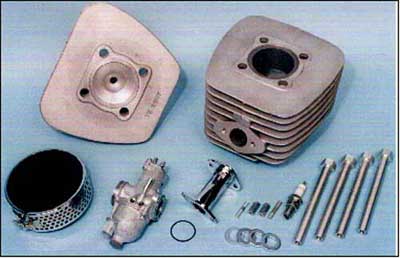

Head and Barrel

Head
The new Challenger head and barrel are produced from brand new moulds that we have produced and are to exact measurement. The head has been spigoted so that it sits in the barrel by 3mm therefore making a perfect seal between head and liner(no more horrible black oil running down the fins!). The combustion chamber is polished and accepts a short reach plug.

Barrel
When we embarked on having the Challenger barrel produced we spoke to several people in varying disciplines of motor cycling. To give you, the customer, more scope to work with we added 8mm to the external of the transfer port area so the barrel can be "worked on" and the porting played with to give you the ultimate performance.
You could if you wish, shave the back end away, cut the inlet port and fit a four petal reed valve. No other Challenger barrel will let you do this because:-

There is not enough aluminium in the barrel
The old barrels did not have enough material round the port areas therefore DMW and DOT barrels would only let you do this on modification

The porting of the barrel has also been worked on. The sharp corners have been removed and re-shaped so that the gas flows better. The porting is as the works bikes in the 70's.

the liner is counter bored into the top of the barrel by 11mm. the top hat liner is fitted after boring. The liner, as can be seen from the picture, is thick enough to reduce noise but also allows rebores up to +80.

Pistons and rings are also available ex-stock. If you would like an engine with performance, you have it in the new Greeves head and barrel.

The head studs are top quality dural aluminium. Washers, crankcase studs 0.25 wht x 0.25 wht. Swan neck manifolds that cool the fuel before it enters the cylinder are chromed.

Amal concentric carburettors 26mm to suit manifolds and air filters are also available

Back to Parts menu

Folding Kick Starts
Produced from cast steel for robustness we have two types available:-
Reference number GRE100 and SM200 - both will fit Villiers 19mm splined shafts.

0.75" splines
Clutch arm brackets
Heel and toe gear levers, back and front
Brake arms together with tank bungie bosses, brake bosses, back brake springs and brake rods made from stainless steel
Chains, sprockets and chain tensioners

Back to Parts menu

Lighting
We have two types of lighting units:-

Trials version which straps round forks with kill swtch/dip switch. Rear number plate with stop light and switch

Chrome headlight, electric hooter, rear light, number plate, stop switch, kill switch, dip/headlight switch. Chrome stantion brackets.
Either version looks good but especially the chrome. 12 volt 85 watt lighting from the electronic ignition system.

Back to Parts menu

Genuine Greeves Leading Link Bushes
Due to customer demand we have had produced the genuine bush for Greeves Leading Link forks. Two ratings of rubber are available:-

45 shore for Trials, MX, Enduro.
50 shore for Road Racing, Road bikes.

These are the genuine article produced brand new.

Also available are the bushes for the square swinging arms and the round swinging arms both in 60 shore rated rubber.

Back to Parts menu
